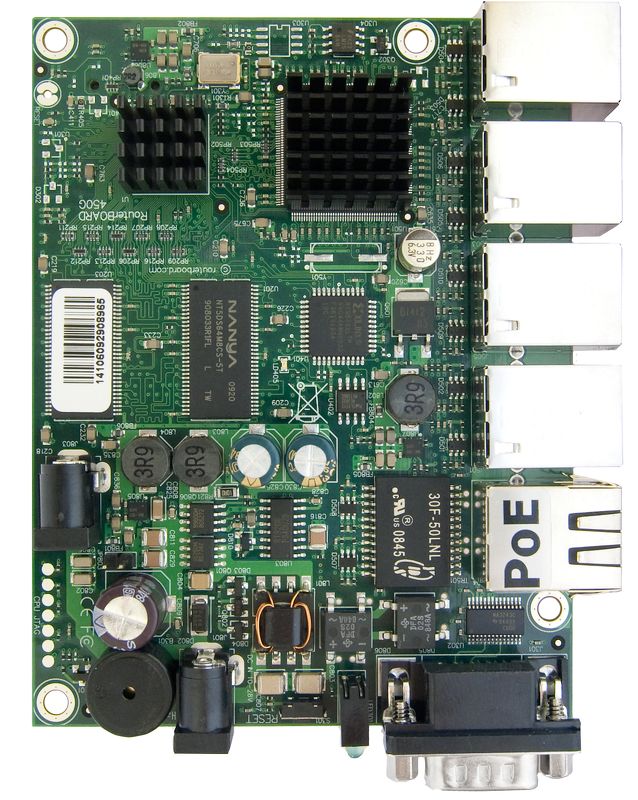

RB450G
The RB450G is a five port Gigabit ethernet router. Comparing to the RB450, the RB450G not only adds Gigabit speed capability, but also 256Mb of RAM, a faster CPU and a microSD card slot for file storage.
The device is powered by a fast AR7161 680MHz Atheros CPU, and also includes a temperature sensor and voltage monitor.
RB450G includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager
Product specifications
| Details |
| Product code |
RB450G |
| CPU nominal frequency |
680 MHz |
| CPU core count |
1 |
| Size of RAM |
256 MB |
| Architecture |
MIPS-BE |
| 10/100/1000 Ethernet ports |
5 |
| Memory Cards |
1 |
| Memory card type |
microSD |
| Power Jack |
2 |
| PoE in |
Yes |
| Supported input voltage |
8 V - 28 V |
| Voltage Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Operating temperature range |
-20°C .. +70°C tested |
| License level |
5 |
| CPU |
AR7161 |
| Serial port |
RS232 |
| Storage type |
NAND |
| Storage size |
512 MB |
|
|
Performance test results
| RB450G |
AR7161 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none |
58.0 |
704.4 |
171.9 |
704.1 |
187.3 |
95.9 |
| Bridging |
25 bridge filter rules |
58.5 |
710.4 |
84.5 |
346.1 |
86.4 |
44.2 |
| Routing |
none |
59.7 |
725.0 |
136.1 |
557.5 |
147.0 |
75.3 |
| Routing |
25 simple queues |
55.2 |
670.3 |
117.7 |
482.1 |
137.0 |
70.1 |
| Routing |
25 ip filter rules |
54.7 |
664.3 |
59.4 |
243.3 |
59.2 |
30.3 | |
