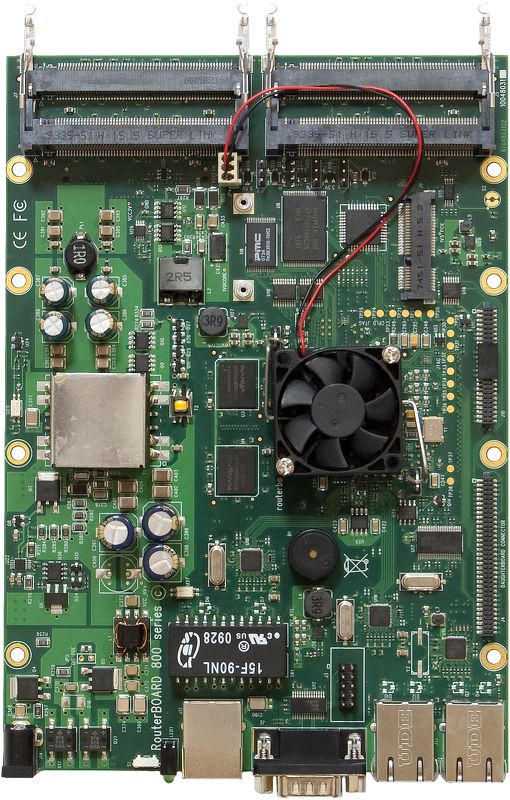

RB800
The RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit ethernet ports, two daughterboard connectors (one PCI and one PCI-e), a miniPCI-e slot and a compact flash slot.
The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all.
RB800 has daughterboard connector, so you have a lot of expansion possibilities. You can buy RB502 to add two miniPCI slots, RB604 to add four miniPCI slots or RB816 to add 16 Ethernet ports!
This is the new definition of wireless networking power. Combined with RouterOS - RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager.
Product specifications
| Details |
| Product code |
RB800 |
| CPU nominal frequency |
800 MHz |
| CPU core count |
1 |
| Architecture |
PPC |
| Size of RAM |
256 MB |
| 10/100/1000 Ethernet ports |
3 |
| MiniPCI slots |
4 |
| MiniPCI-e slots |
1 |
| Memory Cards |
1 |
| Memory card type |
CF |
| Power Jack |
1 |
| 802.3af support |
Yes |
| Supported input voltage |
10 V - 57 V |
| PoE in |
802.3af |
| Voltage Monitor |
Yes |
| CPU temperature monitor |
Yes |
| Dimensions |
14cmx20cm |
| Operating temperature range |
-60°C .. +70°C tested |
| License level |
6 |
| CPU |
MPC8533EVTALF |
| Serial port |
RS232 |
| Storage type |
NAND |
| Storage size |
512 MB |
Performance test results
| RB800 |
MPC8533 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none (fast path) |
243.5 |
2,957.1 |
330.4 |
1,353.3 |
883.8 |
452.5 |
| Bridging |
25 bridge filter rules |
162.3 |
1,971.0 |
185.3 |
759.0 |
187.4 |
95.9 |
| Routing |
none (fast path) |
243.5 |
2,957.1 |
330.0 |
1,351.7 |
755.4 |
386.8 |
| Routing |
25 simple queues |
205.0 |
2,489.5 |
294.4 |
1,205.9 |
303.2 |
155.2 |
| Routing |
25 ip filter rules |
121.4 |
1,474.3 |
122.9 |
503.4 |
122.6 |
62.8 | |
