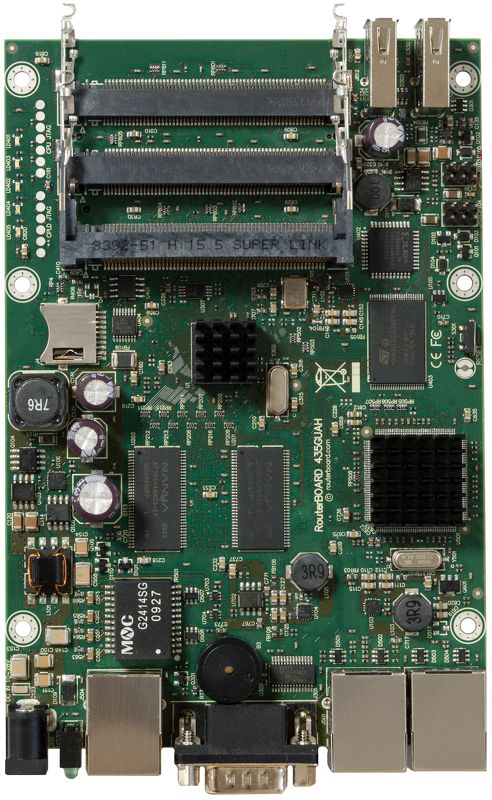

RB435G
Five miniPCI slots and three Gigabit Ethernet ports give you enough connectivity options to use the RB435G as the central part of your network. Now with Gigabit ports, to properly utilize all the speed 802.11n with Nv2 wireless.
Five miniPCI slots to be used for four sectors and a backbone, or any other configuration you need- RB435G has largest number of miniPCI slots from all our products. If you need to utilize many miniPCI cards - RB435G is your choice!
The two USB 2.0 ports can be used for extending storage, adding a 3G wireless modem for backup connectivity,for a mobile installation or all together.
Product specifications
| Details |
| Product code |
RB435G |
| CPU nominal frequency |
680 MHz |
| CPU core count |
1 |
| Architecture |
MIPS-BE |
| Size of RAM |
256 MB |
| 10/100/1000 Ethernet ports |
3 |
| MiniPCI slots |
5 |
| Number of USB ports |
2 |
| Memory Cards |
1 |
| Memory card type |
microSD |
| Power Jack |
1 |
| PoE in |
Yes |
| Supported input voltage |
8 V - 28 V |
| Voltage Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Dimensions |
105mm x 154mm |
| Operating System |
RouterOS |
| Operating temperature range |
-40°C .. +70°C tested |
| License level |
5 |
| Current Monitor |
Yes |
| CPU |
AR7161 |
| USB slot type |
USB type A |
| Serial port |
RS232 |
| Storage type |
NAND |
| Storage size |
64 MB |
Performance test results
| RB435G |
AR7161 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none |
58.0 |
704.4 |
171.9 |
704.1 |
187.3 |
95.9 |
| Bridging |
25 bridge filter rules |
58.5 |
710.4 |
84.5 |
346.1 |
86.4 |
44.2 |
| Routing |
none |
59.7 |
725.0 |
136.1 |
557.5 |
147.0 |
75.3 |
| Routing |
25 simple queues |
55.2 |
670.3 |
117.7 |
482.1 |
137.0 |
70.1 |
| Routing |
25 ip filter rules |
54.7 |
664.3 |
59.4 |
243.3 |
59.2 |
30.3 | |
