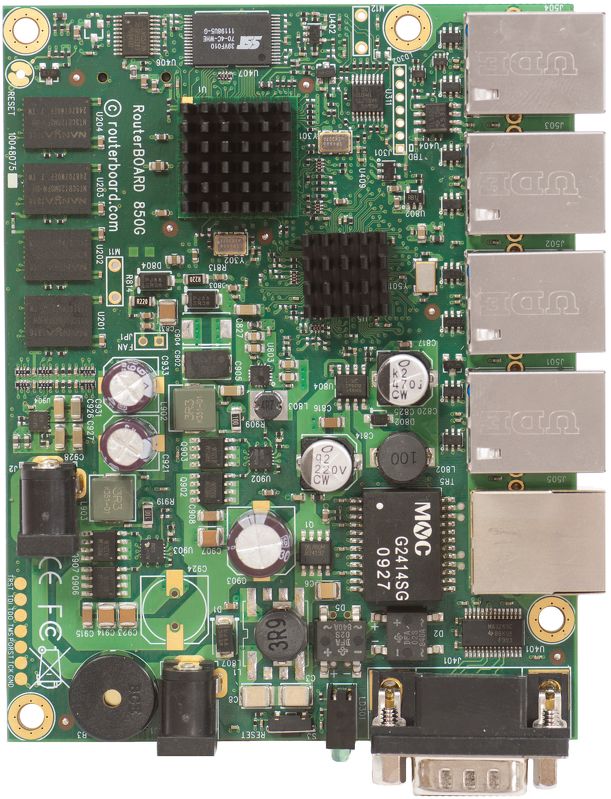

RB850Gx2
The RB850Gx2 is a five port Gigabit ethernet router. Comparing to the RB450G, the RB850Gx2 is much faster, with a dual core CPU, yet it still retains the same form factor, and will fit into the same enclosures.
The device is powered by a 533MHz P1023 PPC CPU, and also includes a temperature sensor and voltage monitor.
Product specifications
| Details |
| Product code |
RB850Gx2 |
| CPU nominal frequency |
533 MHz |
| CPU core count |
2 |
| Size of RAM |
512 MB |
| Architecture |
PowerPC |
| 10/100/1000 Ethernet ports |
5 |
| Memory Cards |
1 |
| Memory card type |
microSD |
| Power Jack |
2 |
| Supported input voltage |
8 V - 28 V |
| PoE in |
Yes |
| Voltage Monitor |
Yes |
| PCB temperature monitor |
Yes |
| CPU temperature monitor |
Yes |
| Dimensions |
90mm x 115mm |
| Operating System |
RouterOS |
| Operating temperature range |
-60°C .. +70°C tested |
| License level |
5 |
| CPU |
P1023NSN5CFB |
| Max Power consumption |
8W |
| Serial port |
RS232 |
| Storage type |
NAND |
| Storage size |
512 MB |
Performance test results
| RB850Gx2 |
P1023 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none |
162.4 |
1,972.2 |
424.1 |
1,737.1 |
446.7 |
228.7 |
| Bridging |
25 bridge filter rules |
162.4 |
1,972.2 |
199.0 |
815.1 |
203.2 |
104.0 |
| Routing |
none |
162.4 |
1,972.2 |
341.1 |
1,397.1 |
336.9 |
172.5 |
| Routing |
25 simple queues |
162.4 |
1,972.2 |
299.3 |
1,225.9 |
314.6 |
161.1 |
| Routing |
25 ip filter rules |
114.8 |
1,394.1 |
119.2 |
488.2 |
120.3 |
61.6 | |
