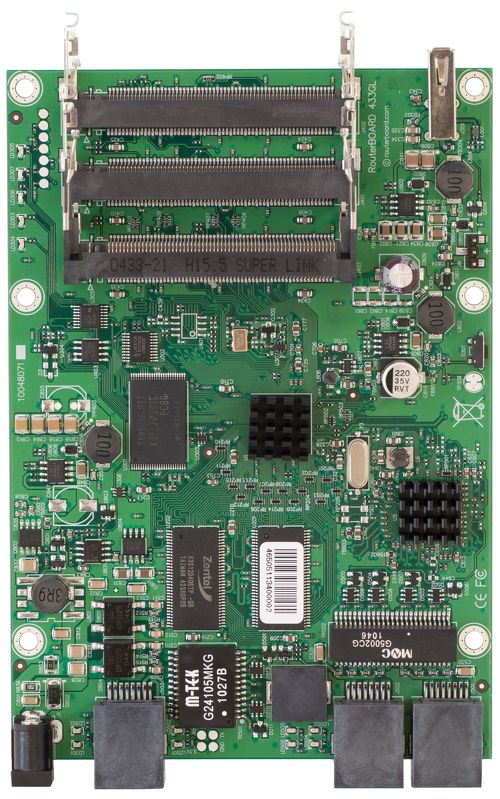

RB433GL
The RB433GL has three miniPCI slots, three Gigabit Ethernet ports and one USB port for storage or a 3G modem.
Three Gigabit Ethernet ports and three miniPCI slots gives you plenty of options- it can be high speed Gigabit Router, sector AP, wireless backhaul, firewall etc. Powerful Atheros 680MHz CPU, 128MB of RAM and Level5 RouterOS license provides required horsepower.
Differences between RB433GL and RB433AH can be seen in the file (RB411L differences) in the left hand menu.
Product specifications
| Details |
| Product code |
RB433GL |
| CPU nominal frequency |
680 MHz |
| CPU core count |
1 |
| Size of RAM |
128 MB |
| Architecture |
AR7161 |
| 10/100/1000 Ethernet ports |
3 |
| MiniPCI slots |
3 |
| Number of USB ports |
1 |
| Power Jack |
1 |
| PoE in |
Yes |
| Supported input voltage |
8 V - 28 V |
| Voltage Monitor |
Yes |
| Dimensions |
105 mm x 154 mm, |
| Operating System |
RouterOS |
| Operating temperature range |
-40°C .. +70°C tested |
| License level |
5 |
| CPU |
AR7161 |
| USB slot type |
USB type A |
| Storage type |
NAND |
| Storage size |
64 MB |
Performance test results
| RB433GL |
AR7161 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none |
58.0 |
704.4 |
171.9 |
704.1 |
187.3 |
95.9 |
| Bridging |
25 bridge filter rules |
58.5 |
710.4 |
84.5 |
346.1 |
86.4 |
44.2 |
| Routing |
none |
59.7 |
725.0 |
136.1 |
557.5 |
147.0 |
75.3 |
| Routing |
25 simple queues |
55.2 |
670.3 |
117.7 |
482.1 |
137.0 |
70.1 |
| Routing |
25 ip filter rules |
54.7 |
664.3 |
59.4 |
243.3 |
59.2 |
30.3 | |
