RB911G-5HPacD

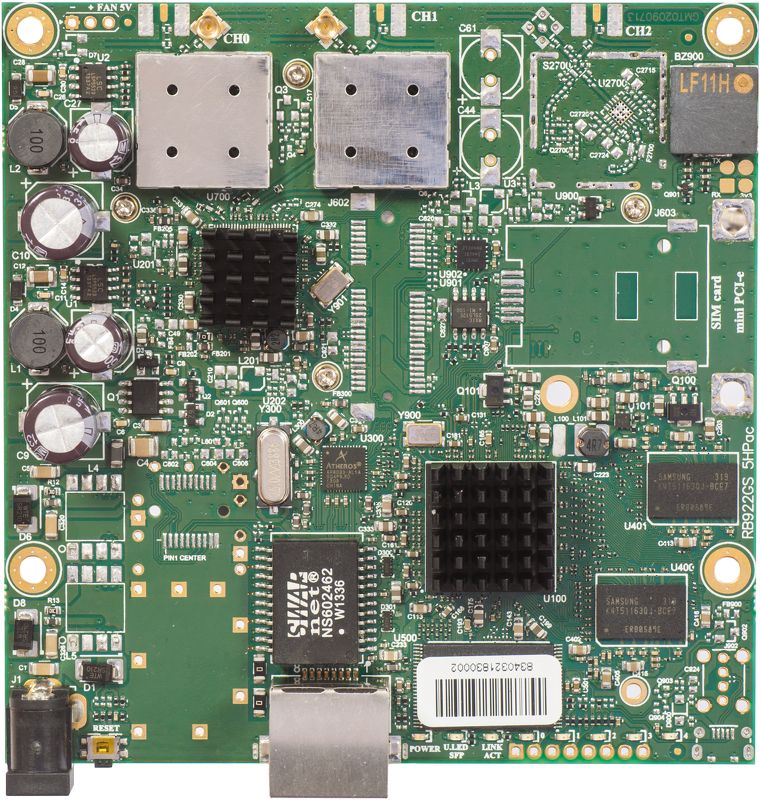

RouterBOARD 911G-5HPacD is our low-cost small form factor CPE board with 802.11ac support. It's perfect for building low-cost 802.11ac CPE devices, as the list price is only $79. Yet, the device is very powerful- it's equipped with 720MHz CPU, 128MB RAM, Gigabit Ethernet port, power jack and 1300mW 802.11ac 5GHz Dual Chain wireless onboard. Comes with RouterOS L3 license.
Product specifications
| Details |
| Product code |
RB911G-5HPacD |
| CPU nominal frequency |
720 MHz |
| CPU core count |
1 |
| Size of RAM |
128 MB |
| 10/100/1000 Ethernet ports |
1 |
| Wireless standards |
802.11a/n/ac |
| Wireless chip model |
QCA9882 |
| Power Jack |
1 |
| Supported input voltage |
8 V - 30 V |
| PoE in |
Yes |
| Voltage Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Dimensions |
105x105mm |
| Operating System |
RouterOS |
| Operating temperature range |
-40°C .. +70°C tested |
| License level |
3 |
| CPU |
QCA9557 |
| Max Power consumption |
12W |
| Number of chains |
2 |
| Storage type |
NAND |
| Storage size |
128 MB |
Wireless specifications
| 5 GHz |
| |
TX |
RX |
| 6MBit/s |
31 |
-96 |
| 54MBit/s |
27 |
-81 |
| MCS0 |
30 |
-96 |
| MCS7 |
27 |
-77 |
| MCS9 |
22 |
-72 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Performance test results
| RB911G-5HPacD |
QCA9550 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none (fast path) |
162.4 |
1,972.2 |
170.8 |
699.6 |
370.2 |
189.5 |
| Bridging |
25 bridge filter rules |
162.4 |
1,972.2 |
111.8 |
457.9 |
99.9 |
51.1 |
| Routing |
none (fast path) |
162.4 |
1,972.2 |
317.4 |
1,300.1 |
370.2 |
189.5 |
| Routing |
25 simple queues |
162.4 |
1,972.2 |
174.2 |
713.5 |
176.2 |
90.2 |
| Routing |
25 ip filter rules |
60.2 |
731.1 |
62.8 |
257.2 |
61.8 |
31.6 | |
