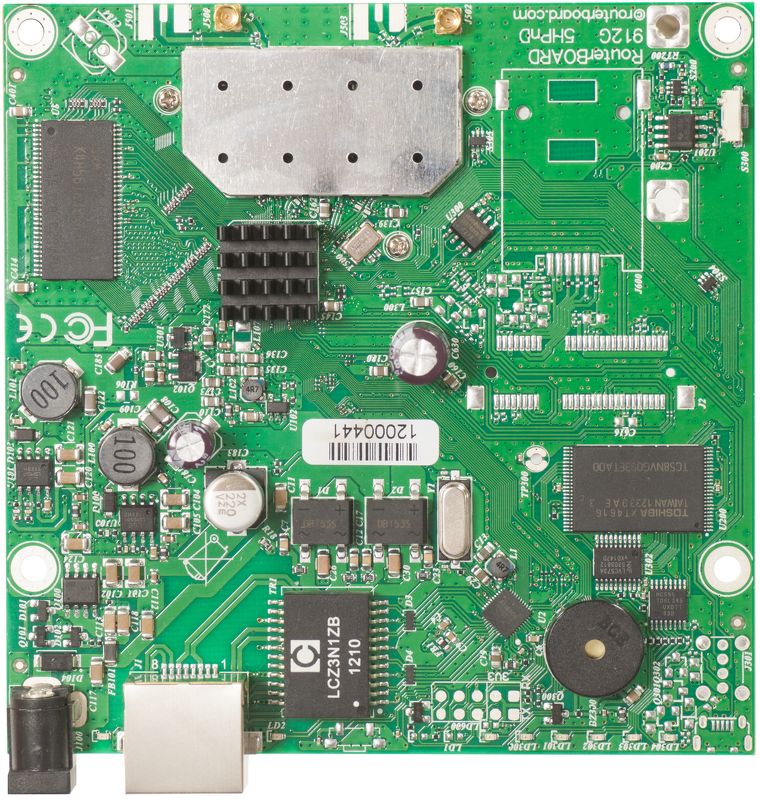

RB911G-5HPnD
The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the
MMCX ports.
Product specifications
| Details |
| Product code |
RB911G-5HPnD |
| CPU nominal frequency |
600 MHz |
| CPU core count |
1 |
| Size of RAM |
64 MB |
| Architecture |
MIPS-BE |
| 10/100/1000 Ethernet ports |
1 |
| Wireless chip model |
AR9342 |
| Wireless standards |
802.11a/n |
| Power Jack |
1 |
| PoE in |
Yes |
| Supported input voltage |
8 V - 30 V |
| Voltage Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Dimensions |
105x105mm |
| Operating System |
RouterOS |
| Operating temperature range |
-40°C .. +70°C tested |
| License level |
3 |
| CPU |
AR9342 |
| Max Power consumption |
11W at 24V |
| Number of chains |
2 |
| Storage type |
NAND |
| Storage size |
128 MB |
Wireless specifications
| 5 GHz |
| |
TX |
RX |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
27 |
-78 |
| MCS0 |
30 |
-96 |
| MCS7 |
26 |
-75 |
wireless parameters may be limited in software, depending on your local regulatory limitations
Performance test results
| RB911G-5HPnD |
AR9342 1G 1 port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none (fast path) |
81.0 |
983.7 |
232.0 |
950.3 |
269.6 |
138.0 |
| Bridging |
25 bridge filter rules |
81.0 |
983.7 |
86.0 |
352.3 |
87.6 |
44.9 |
| Routing |
none (fast path) |
81.0 |
983.7 |
210.0 |
860.2 |
226.9 |
116.2 |
| Routing |
25 simple queues |
81.0 |
983.7 |
103.9 |
425.6 |
106.6 |
54.6 |
| Routing |
25 ip filter rules |
56.8 |
689.8 |
59.6 |
244.1 |
60.5 |
31.0 | |
