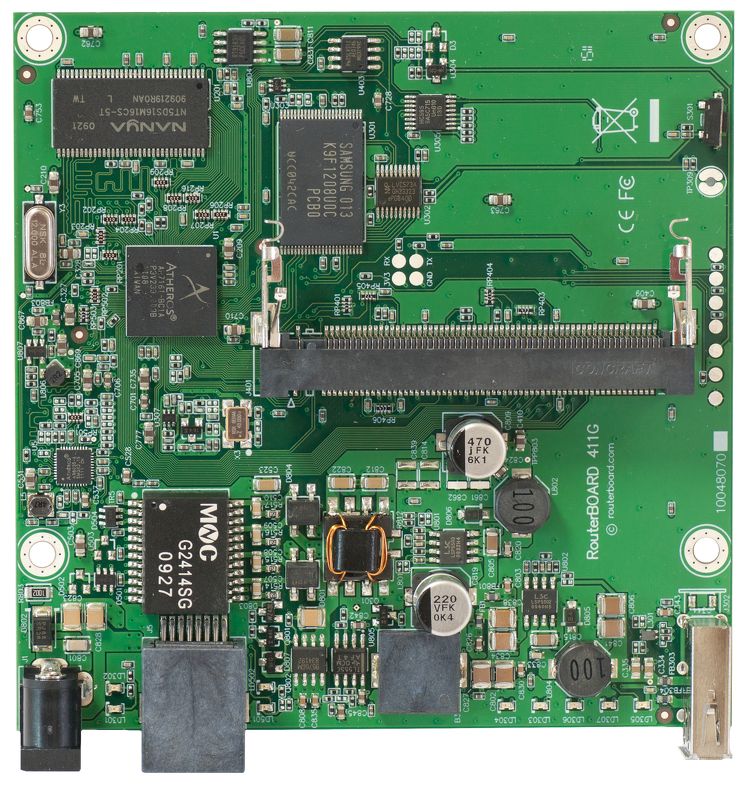

RB411GL
The RB411GL is created for high-end wireless AP, Point-to-Point or CPE OEM applications. It has Gigabit Ethernet port, so you can take full advantage of 802.11n standard.
Unit has one miniPCI slot for your choice of miniPCI wireless card, powerful Atheros 680MHz CPU, 64MB of RAM and a USB port for 3G or storage.
Product specifications
| Details |
| Product code |
RB411GL |
| CPU nominal frequency |
680 MHz |
| CPU core count |
1 |
| Architecture |
MIPS-BE |
| Size of RAM |
64 MB |
| 10/100/1000 Ethernet ports |
1 |
| MiniPCI slots |
1 |
| Number of USB ports |
1 |
| Power Jack |
1 |
| Supported input voltage |
8 V - 30 V |
| PoE in |
Yes |
| Voltage Monitor |
Yes |
| Dimensions |
105x105mm |
| Operating System |
RouterOS |
| Operating temperature range |
-40°C .. +70°C tested |
| License level |
4 |
| CPU |
AR7161 |
| USB slot type |
USB type A |
| Storage type |
NAND |
| Storage size |
64 MB |
Performance test results
| RB411GL |
AR7161 1G all port test |
| Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
| kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
| Bridging |
none |
58.0 |
704.4 |
171.9 |
704.1 |
187.3 |
95.9 |
| Bridging |
25 bridge filter rules |
58.5 |
710.4 |
84.5 |
346.1 |
86.4 |
44.2 |
| Routing |
none |
59.7 |
725.0 |
136.1 |
557.5 |
147.0 |
75.3 |
| Routing |
25 simple queues |
55.2 |
670.3 |
117.7 |
482.1 |
137.0 |
70.1 |
| Routing |
25 ip filter rules |
54.7 |
664.3 |
59.4 |
243.3 |
59.2 |
30.3 | |
